BQ614

7 x USB Desktop PC
Intel 12th/13th/14th Gen. CPU
1 x 2.5GbE RJ45, 1 x 1GbE RJ45
Intel® B760 Chipset
Intel® B760 Chipset
The BQ614 adopts Intel® B760 chipset, it can support Intel® 12th/13th/14th generation socket type processors. It supports dual-channel DDR5 memory and it is flexible to extend the NVMe SSD and 1 x SATAIII storage.
Supporting 3 Displays<br/>  Supporting 8K Resolution
Supporting 3 Displays
Supporting 8K Resolution
With Intel® UHD Graphics 770 or 750 or 730, BQ614 supports 3 displays. Two of the displays are an HDMI 2.0a (4096x2304@60Hz) and a DisplayPort 1.4 (7680x4320 @60Hz), or optional a VGA port (2048 x 1536@60Hz). Besides, its USB type-C port provides DP1.4 signal supporting up to 8K resolution.
Rich I/O Ports<br/> Supporting Intrusion Detection
Rich I/O Ports
Supporting Intrusion Detection
The PC measures only 1.24L, yet supports rich I/O ports, including 6 x USB Type-A and dual LAN ports. With a micro switch, it can detect removal of the computer cover. Once the chassis was opened, the BIOS will record (won't alarm) and warn you next time when the system starts up.
I/O port introduction
CPU CPU
Intel® LGA1700 Socket 12th/13th/14th Gen. processors

Frequency

by CPU

Chipset

B760 / H610

Processing Units

by CPU

TDP

≤ 65 W
Memory Size Up to 96 GB
Type 2 x SO-DIMM DDR5-5600 MHz
Storage Socket 1
1 x M-Key M.2 (2280) PCIe3.0 X4 for SSD
Socket 2
1 x 2.5” SATAIII (7+15 pin)
Display

GPU

Intel® UHD Graphics 730/770

Graphic Engine

DirectX 12.0, OpenGL 4.5, OpenCL 3.0,

Display Interface

1 x HDMI (Max. 4096 x 2160 @60 Hz)
1 x DP1.4 (Max. 7680 x 4320 @60 Hz)
Optional: VGA (Max. 2048 x 1536 @60 Hz) colay with DP
Network
Network Controller
1 x Realtek RTL 8111H Gigabit Ethernet
1 x Intel Ethernet Controller I226-V
Ethernet Interface
1 x 2.5GbE RJ45, 1 x 1GbE RJ45
Wi-Fi/BT
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi6, Wi-Fi6E (CNVi), Wi-Fi7 (Only 14th Gen CPU)
Mobile Network
1 x B-Key M.2 (3042/3052) for 4G/5G, 1 x SIM Slot
I/O interface

USB(B760)

1 x USB Type-C3.2 Gen2 (Supports DP1.4 output)
2 x USB3.2 Gen2, 2 x USB3.2 Gen1, 2 x USB2.0
USB(H610)
1 x USB Type-C3.2 Gen2 (Supports DP1.4 output)
1 x USB3.2 Gen2, 1 x USB3.2 Gen1, 4 x USB2.0

Serial Port

1 x RS232

Audio

1 x MIC-IN, 1 x LINE-OUT

Button

1 x Power on, 1 x CLR-CMOS

Antenna

2 x Connector for Wi-Fi/BT

System
TPM
Optional: TPM2.0
Watchdog Timer
Yes
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Power Requirement

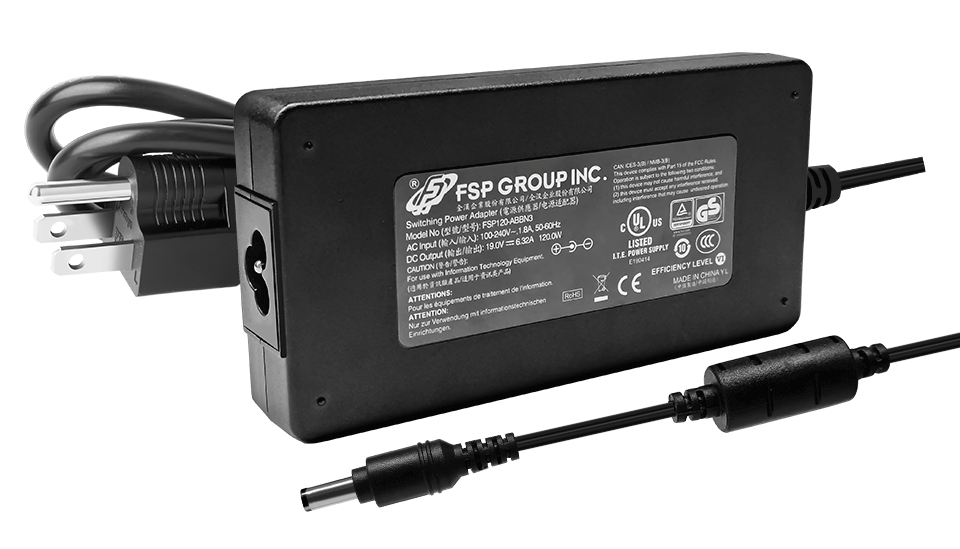

DC-IN, 19 V/6.32 A
Dimensions
200 mm x 185 mm x 35.5 mm (7.87” x 7.28” x 1.40”)
Construction
Metal, Black
Operating System
Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity
95% @ 45°C (non-condensing)
Certifications
CE, FCC Class B, UKCA
